The following are about the selection skills of magnetic beads in PCB design in PCB factories:

Reasons for using PCB chip magnetic beads and chip inductors: whether to use PCB chip magnetic beads or chip inductors mainly depends on the application. Chip inductors are required in resonant PCB circuits. When it is necessary to eliminate unwanted EMI noise, it is the best choice to use SMD magnetic beads.

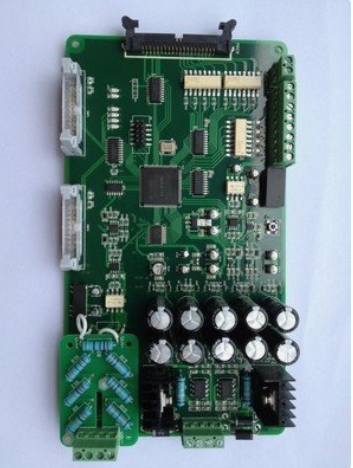

pcb board

1. Special attention should be paid to the fact that the unit of magnetic bead is ohm, not Hunt. Because the unit of magnetic bead is nominal according to the impedance generated at a certain frequency, the unit of impedance is also ohm. The DATASHEET of the magnetic bead will generally provide the characteristic curve of frequency and impedance. The standard is 100MHz, such as 1000R 100MHz, which means that the impedance of the magnetic bead is equivalent to 600 ohms at 100MHz.

2. Ordinary filters are composed of lossless reactance elements. Their role in the line is to reflect the stopband frequency back to the signal source. Therefore, such filters are also called reflection filters. When the reflection filter does not match the impedance of the signal source, part of the energy will be reflected back to the signal source, causing the enhancement of the interference level. To solve this problem, ferrite magnetic rings or magnetic bead sleeves can be used on the incoming line of the filter to convert the high-frequency components into heat loss by using the eddy current loss of the ring or magnetic bead on the high-frequency signal. Therefore, the magnetic ring and magnetic bead actually absorb high-frequency components, so they are sometimes called absorption filters.

Different ferrite suppression PCB components have different optimal suppression frequency ranges. Generally, the higher the permeability, the lower the frequency of suppression. In addition, the larger the volume of ferrite, the better the inhibition effect. According to some research on iLove. com, when the volume is fixed, the long and thin shape has better inhibition effect than the short and thick shape, and the smaller the inner diameter is, the better the inhibition effect will be. However, in the case of DC or AC bias, there is also the problem of ferrite saturation. The larger the cross section of the suppression element is, the less likely it is to be saturated, and the greater the tolerable bias. When EMI absorbs magnetic ring/magnetic bead to suppress differential mode interference, the current value through it is proportional to its volume, and the misalignment of the two causes saturation, which reduces the component performance; When suppressing common mode interference, pass two lines (positive and negative) of the power supply through a magnetic ring at the same time. The effective signal is a differential mode signal. EMI absorption magnetic ring/magnetic bead has no effect on it, but it will show a large inductance for common mode signals. A better way to use the magnetic ring is to repeatedly wind the conductor of the magnetic ring to increase the inductance. It can be used reasonably according to the principle of electromagnetic interference suppression.

Ferrite suppression elements should be installed close to interference sources. For input/output circuit, it shall be close to the inlet and outlet of shielding shell as far as possible. For the absorption filter composed of ferrite magnetic ring and magnetic bead, in addition to selecting the lossy material with high permeability, attention should also be paid to its application. Their resistance to high-frequency components in the circuit is about ten to several hundred Ω, so its role in high impedance circuits is not obvious. On the contrary, it will be very effective in low impedance circuits (such as power distribution, power supply or RF circuits).

Ferrite is widely used in EMI control because it can attenuate higher frequencies and let lower frequencies pass through almost unimpeded. The magnetic rings/beads used for EMI absorption can be made into various shapes and are widely used in various occasions. If it is on the PCB, it can be added to DC/DC modules, data lines, power lines, etc. It absorbs high-frequency interference signals on the line where it is located, but it will not generate new zero poles in the system and will not damage the stability of the system. It can be used in conjunction with the power filter to supplement the high frequency performance of the filter and improve the filtering characteristics of the system.

Magnetic beads are specially used to suppress high-frequency noise and spike interference on signal lines and power lines, and also have the ability to absorb electrostatic pulses.

Magnetic beads are used to absorb ultra-high frequency signals. For example, some RF PCB circuits, PLL, oscillation circuits, and circuits containing ultra-high frequency memories (DDR SDRAM, RAMBUS, etc.), magnetic beads need to be added to the power input part. Inductors are energy storage components used in LC oscillation circuits, medium and low frequency filtering circuits, etc. Their application frequency range rarely exceeds 50 MHz.

The function of the magnetic bead is mainly to eliminate the RF noise existing in the transmission line structure (circuit). The RF energy is the AC sine wave component superimposed on the DC transmission level. The DC component is a useful signal needed, while the RF energy is useless electromagnetic interference transmitted and radiated (EMI) along the line. To eliminate these unwanted signal energies, use the SMD beads to act as high-frequency resistors (attenuators), which allow DC signals to pass through and filter out AC signals. Usually, the high frequency signal is above 30MHz, however, the low frequency signal will also be affected by the patch bead.

SMD beads are composed of soft ferrite materials, forming a single stone structure with high volume resistivity. The eddy current loss is inversely proportional to the resistivity of the ferrite material. The eddy current loss is proportional to the square of the signal frequency. Advantages of using SMD beads: miniaturization and lightweight, high impedance in the RF noise frequency range, and elimination of electromagnetic interference in the transmission line. The closed magnetic circuit structure can better eliminate the serial winding of signals. Excellent magnetic shielding structure. Reduce the DC resistance to avoid excessive attenuation of useful signals. Significant high frequency characteristics and impedance characteristics (better elimination of RF energy). The parasitic oscillation is eliminated in the high-frequency amplification circuit. It works effectively in the frequency range of several MHz to several hundred MHz.

In order to correctly select magnetic beads, the author gives some core suggestions:

1、 What is the frequency range of unwanted signals;

2、 Who is the noise source;

3、 Whether there is space to place magnetic beads on PCB;

4、 How much noise attenuation is required;

5、 What are the environmental conditions (temperature, DC voltage, structural strength);

6、 What is the circuit and load impedance;

The first three can be judged by observing the impedance frequency curve provided by the manufacturer. In the impedance curve, three curves are very important, namely resistance, inductive impedance and total impedance. The total impedance is described by ZR22 π fL() 2+:=fL. Through this curve, select the magnetic bead model with the maximum impedance within the frequency range of noise attenuation and the minimum signal attenuation under low frequency and DC. The impedance characteristics of the SMD beads will be affected under excessive DC voltage. In addition, if the operating temperature rises too high or the external magnetic field is too large, the impedance of the beads will be adversely affected. You can also go to Shenzhen Electronics Exhibition to choose. The reason for using the SMD magnetic beads and SMD inductors: whether to use the SMD magnetic beads or SMD inductors mainly depends on the application. Chip inductors are required in resonant circuits. When it is necessary to eliminate unwanted EMI noise, it is the best choice to use SMD magnetic beads.

Applications of SMD magnetic beads and SMD inductors:

Chip inductor: radio frequency (RF) and wireless communication, information technology equipment, radar detector, car, cellular phone, pager, audio equipment, PDAs (personal digital assistant), wireless remote control system, low-voltage power supply module, etc.

PCB chip magnetic beads: clock generation circuit, filtering between analog circuit and digital circuit, I/O input/output internal connectors (such as serial port, parallel port, keyboard, mouse, long-distance telecommunications, local area network), between radio frequency (RF) circuit and logic equipment susceptible to interference, filtering high-frequency conducted interference in power supply circuit, EMI noise suppression in computer, video recorder (VCRS), television system and mobile phone.
