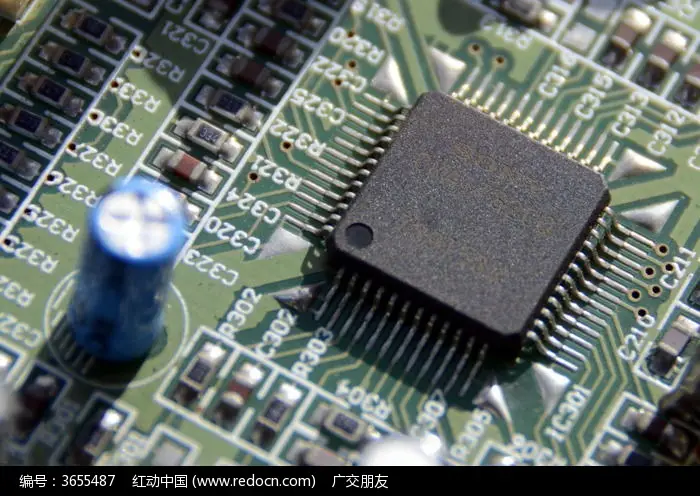

Circuit board assembly

With the development of PCBA assembly of electronic products towards miniaturization and high assembly density, SMT Surface Mount Technology has now become the mainstream technology of electronic assembly. However, due to the large size of some electronic components in the assembly and processing of PCBA, plug-in processing has not been replaced, and still plays an important role in the electronic assembly and processing process, so there will be a certain number of through-hole plug-in components in the PCB circuit board. The assembly of both cartridge components and surface assembly components is called hybrid assembly, referred to as mixed assembly, and the assembly using all surface assembly components is called full surface mount. PCBA assembly method and process flow mainly depend on the type of components assembled and the equipment conditions assembled. What steps are involved in PCB Assembly?

Step 1: Application of solder paste

This is the first step in PCB assembly. Before adding the components, you need to add the solder paste. Ming Hua Hang electric automatic printing machine. Solder paste needs to be added to the area of the circuit board where solder is to be applied. Apply solder paste to circuit board with the help of solder screen. It is placed in the correct position on the board, and the runner moves over it. This allows the solder paste to be squeezed through the hole and applied to the circuit board.

Step 2: Place the components

This is done after applying the solder paste. Surface mount technology (SMT) requires precise placement of components, which is difficult to achieve by manual placement. Therefore, the components are placed on the board with the help of a pick - up machine. The PCB design information provides information on where the components need to be placed and the components needed to pick up and place the machine. This simplifies the pick - up programming and makes it more accurate.

Step 3: Reflux furnace

In this step, the actual connection takes place. After placing the components, place the circuit board on the reflux furnace conveyor belt. The solder applied during welding melts during reflow. This permanently connects the component to the board.

Step 4: Wave crest welding

In this step, the PCB is placed on the system driven by the mechanical conveyor and passed through different areas. The PCB passes through a melt weld wave, which helps connect the PCB pads/holes, electronic component leads, and solder. This helps form electrical connections. It should be noted that different selective crest welding processes can be selected according to the number of components on the bottom surface. With different processes, the spacing and orientation requirements of components are also different. You can refer to the layout requirements of board components.

Step 5: Clean the PCB

It is very important to clean PCB after assembly. This process helps clean all flux residues with the help of ionized water.

Step 6: Check the PCB components

This is one of the most important steps in PCB assembly. Techniques such as X-rays and AOI are used to determine the quality of assembled PCBS. In this step, check the circuit board for short circuits, loose balls, and Bridges between balls.

Step 7: Test the board and monitor the output

This is the last step in the process. This step involves monitoring whether the product provides the desired output. The board is tested and analyzed for faults in several ways.

In soldering process, the smallest variables should belong to the machine equipment, so the first to check them, in order to achieve the correctness of the check, can be assisted by an independent electronic analyzer, such as thermometer detection of various temperatures, accurate calibration of machine parameters with an electric meter.
